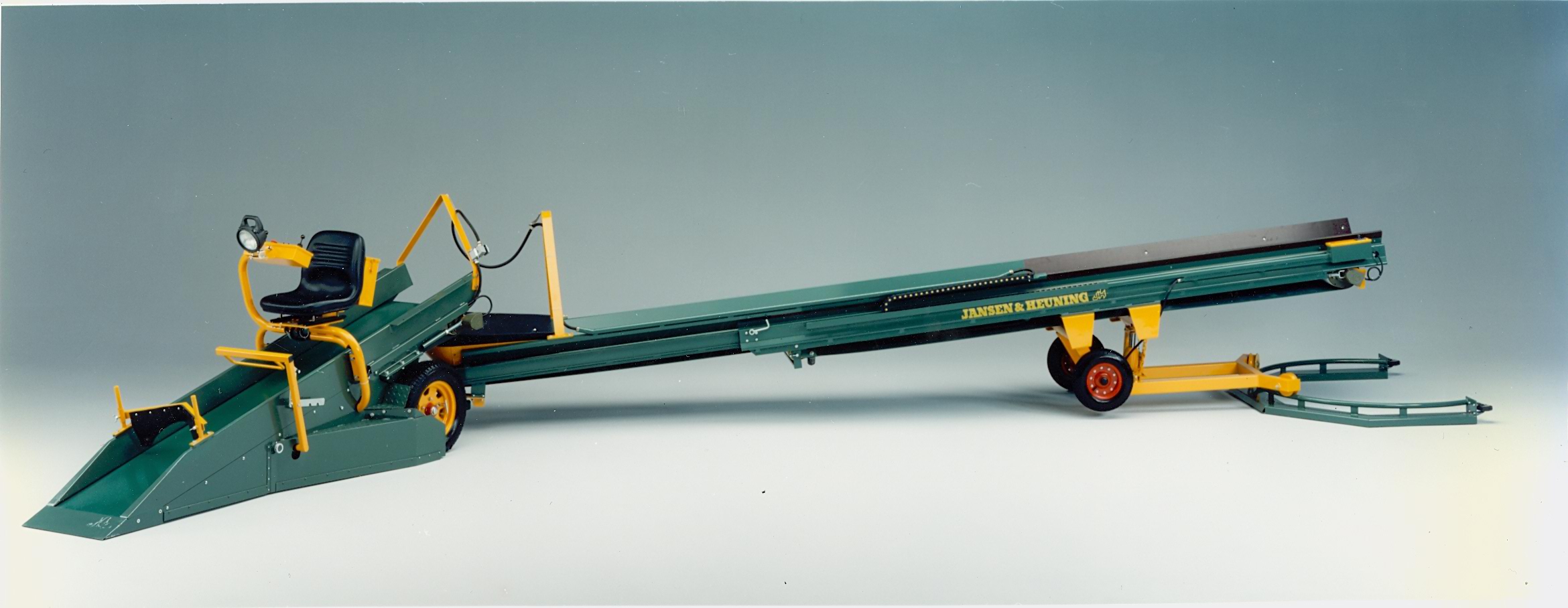

Description T60L pickup unit

typ T60L
capacity to (tons/hr) 80
beltwidth pickupbelt 550
beltwidth telescopebelt 600
working range ( m²) 170
length pickup truck B 3300
telescope retracted C 4200
telescope extracted 7480
extandable lenght 3280
maximum machineheight D 1500
maximum height telescope E 1110
maximum width F 1080
beltspeed pickupbelt (m/s) 0,53
beltspeed telescopebelt (m/s) 1,0

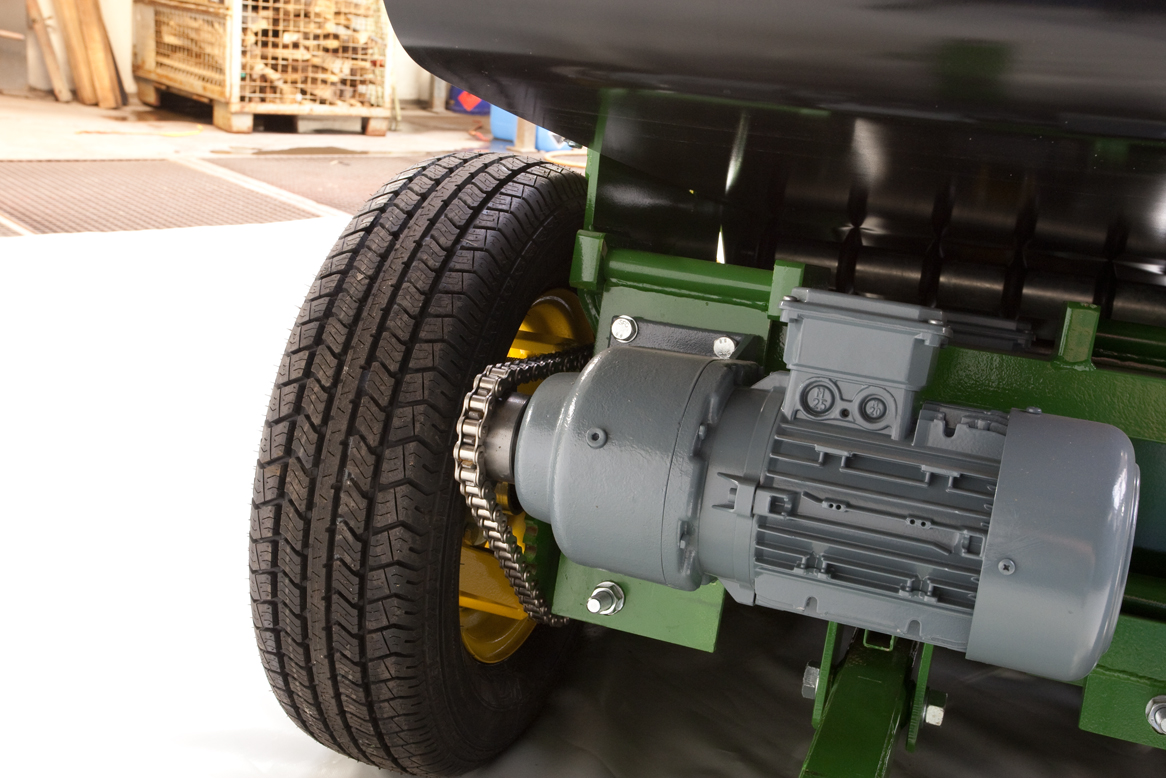

drive truck (kW) 2x 1,1
drive pickupbelt (kW) 1,5
drive telescopebelt (kW) 2,2
weight pickupbelt (kg) 750
weight telescopebelt (kg) 570
all measures in mm

options

  • moveable shields
    uneven floors and thresholds are no longer a problem
  • automatic stop switch
    The pickup and telescopic belt will be deactivated when the dischargebin overflows. It is still possible to move the machine.

specs

options T60L
moveable shields
automatic stop switch
remote control
wireless remote control
two-speed drum motor mp
grain version T60L-T60S
grain version T40L
T60L force enlarger

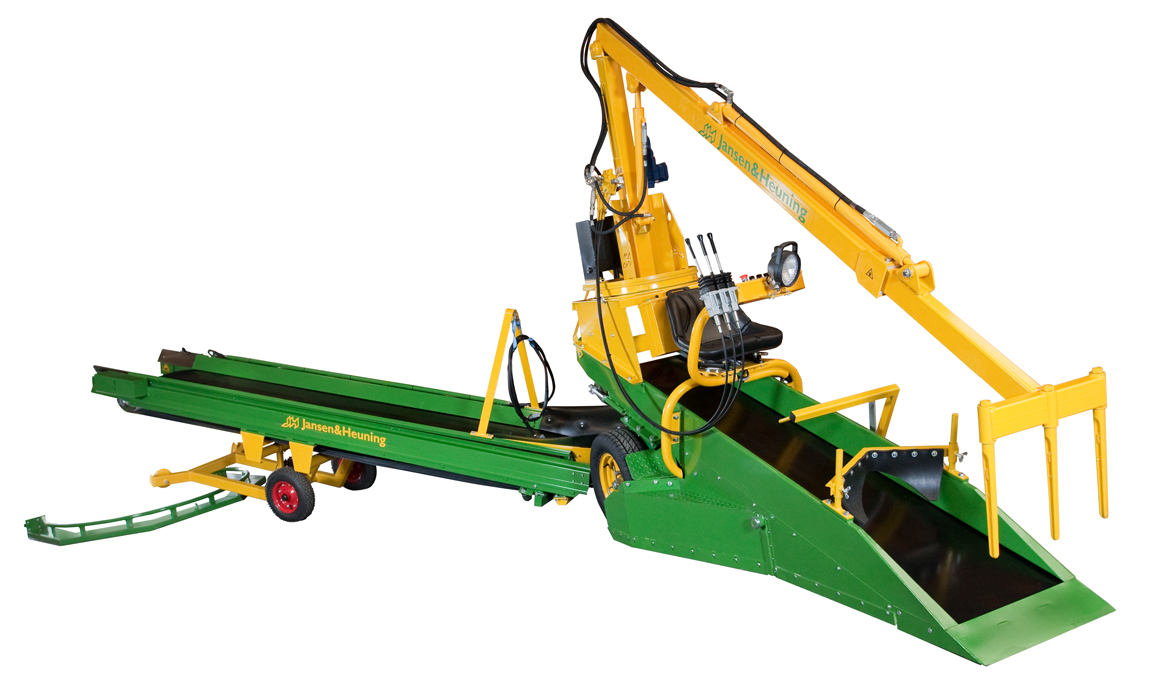

onion grab, separately delivered
onion grab mounting on T60L – T60S
scraper pickup belt T40L
scraper pickup belt T60L – T60S
scraper telescope belt T40L
schraper telescope belt T60L – T60S
