Description Outdoor silo – Corrugated sheet

Jansen&Heuning has years of experience in building storage silos of the Polish manufacturer BIN. Besides the smooth wall silos, there are also reinforced silos with corrugated edges available. This type of silo has a different construction which gives them more possibilities in diameter and height.

Advantages of storage silos over warehouses

  • cheap in purchase
  • maintenance-free through use of galvanized steel
  • efficient use of space
  • automatic filling and unloading
  • protected against birds etc.
  • no problems with wet floors
  • good dust control
  • no broken ventilation ducts
  • little clearing work

When to choose outdoor silos with corrugated sheet?

Corrugated sheet silos are recommended for storage capacities from approx. 1000 tonnes. These have a stronger construction and longer lifespan. Corrugated plate silos are available with capacities from 500 to 5000 tonnes per silo. Flat sheet silos are used for outdoor silos with capacities up to around 1,000 tonnes. These are slightly lighter when it comes to construction and therefore more economical to purchase.

Storing technique

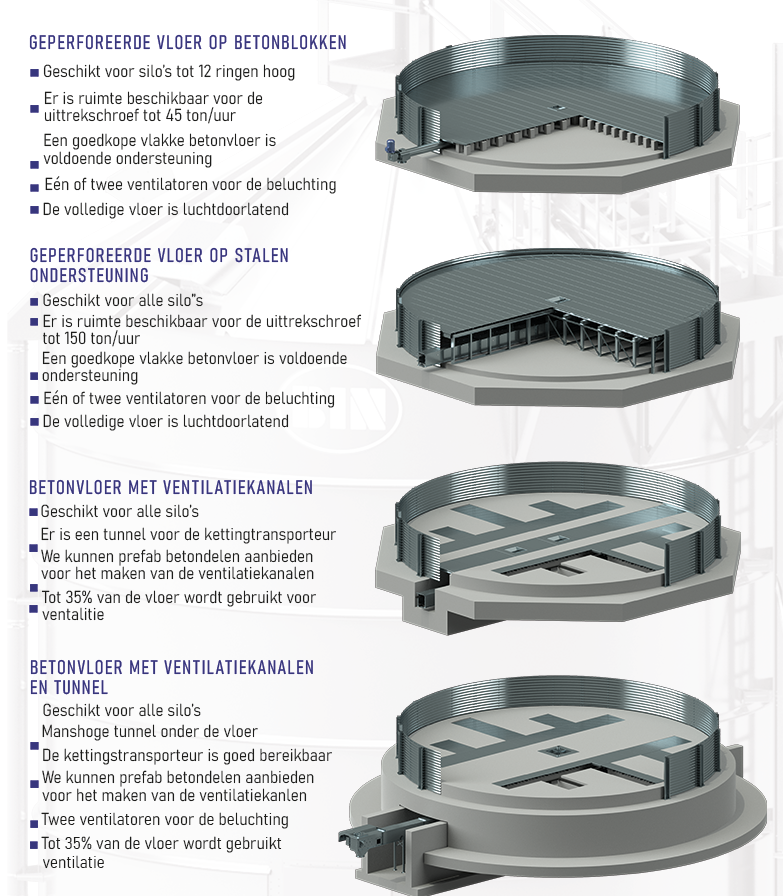

The storage silos can be equipped with various types of aeration floors. The aeration floor has three different versions and there is also a wide choice with the unloading system of the silos.

Technical dimensions

FBIN9 diameter 8,6m

type steel floor on concrete blocks m3 steel floor on concrete blocks and screed m3 steel floor on supporting grill m3 steel floor on supporting grill and screed m3 concrete floor with ventilation ducts m3
FBIN 9/10 692 683 657 649 688
FBIN 9/11 758 749 723 715 754
FBIN 9/12 825 816 790 782 821
FBIN 9/13 856 848 887
FBIN 9/14 922 914 953



FBIN11 diameter 11,5m

type steel floor on concrete blocks m3 steel floor on concrete blocks and screed m3 steel floor on supporting grill m3 steel floor on supporting grill and screed m3 concrete floor with ventilation ducts m3
FBIN 11/10 1258 1242 1197 1181 1251
FBIN 11/11 1376 1360 1315 1299 1369
FBIN 11/12 1494 1478 1433 1417 1487
FBIN 11/13 1550 1534 1604
FBIN 11/14 1668 1652 1722
FBIN 11/15 1785 1769 1839
FBIN 11/16 1903 1887 1957
FBIN 11/17 2020 2004 2074



FBIN14 diameter 14,3m

type steel floor on concrete blocks m3 steel floor on concrete blocks and screed m3 steel floor on supporting grill m3 steel floor on supporting grill and screed m3 concrete floor with ventilation ducts m3
FBIN 14/10 2011 1987 1916 1892 2000
FBIN 14/11 2195 2171 2100 2076 2184
FBIN 14/12 2379 2355 2284 2260 2368
FBIN 14/13 2467 2442 2551
FBIN 14/14 2651 2627 2735
FBIN 14/15 2835 2811 2919
FBIN 14/16 3018 2994 3102
FBIN 14/17 3202 3178 3286



FBIN17 diameter 16,7m

type steel floor on concrete blocks m3 steel floor on concrete blocks and screed m3 steel floor on supporting grill m3 steel floor on supporting grill and screed m3 concrete floor with ventilation ducts m3
FBIN 17/14 3658 3625 3772
FBIN 17/15 3908 3875 4022
FBIN 17/16 4158 4125 4272
FBIN 17/17 4408 4375 4522
FBIN 17/18 4658 4625 4772
FBIN 17/19 4909 4876 5023



FBIN19 diameter19,1m

type steel floor on concrete blocks m3 steel floor on concrete blocks and screed m3 steel floor on supporting grill m3 steel floor on supporting grill and screed m3 concrete floor with ventilation ducts m3
FBIN 19/15 5170 5127 5319
FBIN 19/16 5497 5454 5646
FBIN 19/17 5823 5780 5972
FBIN 19/18 6150 6107 6299
