Description

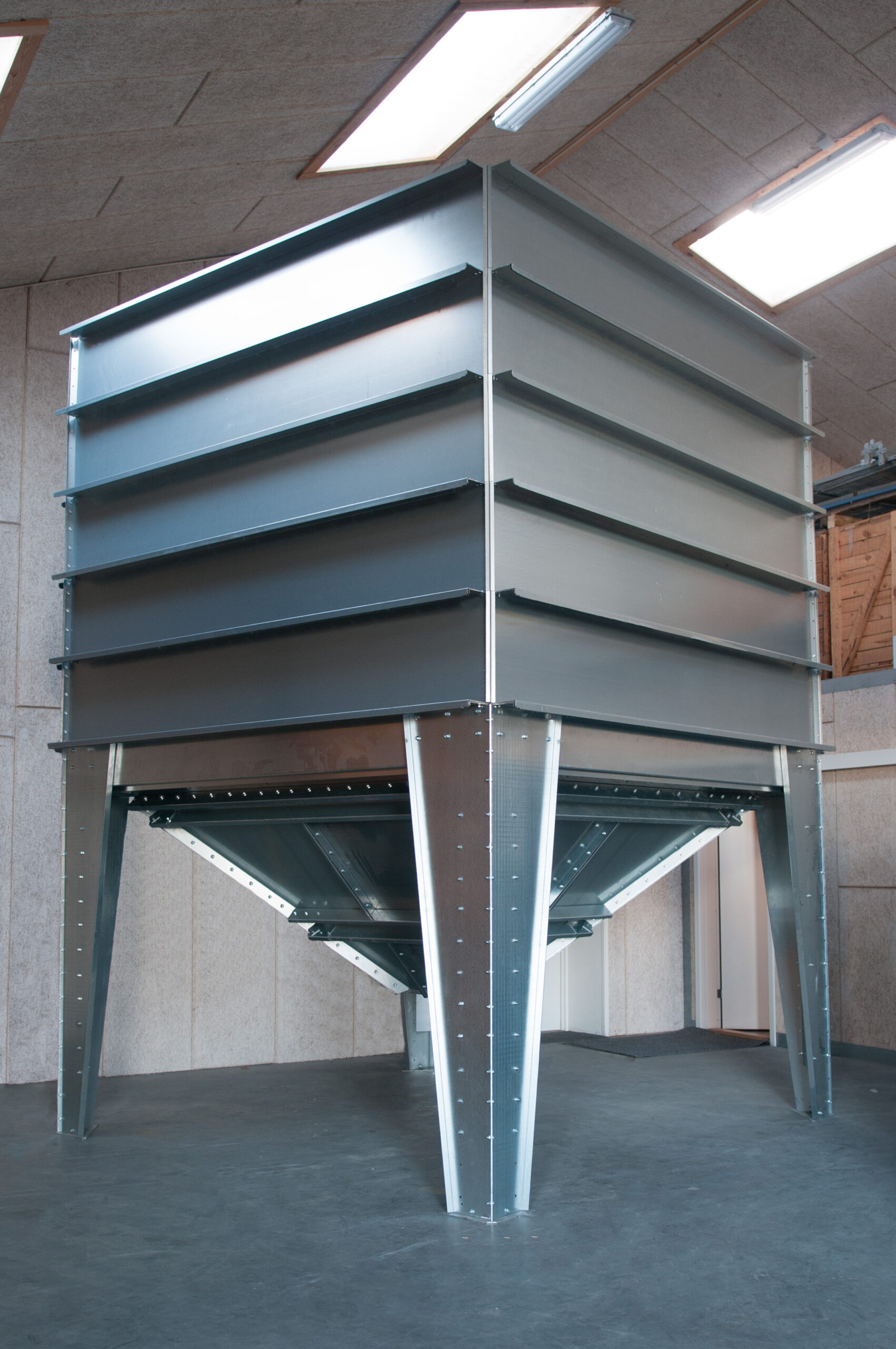

Cleansilo 100 – 150

The Cleansilo is the new generatino of the modulair silo, that is known for its quality.

The optimalised legstructure en the funnelbottom offer two clear advantages: a nicer finish and shorter assembly time.

The funnel is supplied with an angle of 60 ° and a drain of 300×300 mm.

Measurements (mm) Height (m) Content (ton)
1050 x 1050 1.20 – 6.60 0.22 – 2.94
1300 x 1300 1.20 – 6.60 0.46 – 4.82
1550 x 1550 1.20 – 6.95 0.87 – 7.32

Cleansilo 200 – 300

The hopper of the Cleansilo 200-300 is available with two different inclination angles: 45 ° and 60 °.

Measurements (mm) Height (m) Content(ton)
2125 x 2125 1.79 – 10.68 0.92 – 26.18
2711 x 2711 2.05 – 8.85 1.84 – 31.51
3147 x 3147 2.06 – 10.26 3.02 – 50.20

 Advantages Cleansilo

  • No foreign matter in material flow, because all nuts and bolts are mounted on the outside.
  • Good internal hygiene, optimum drainage and a long service life due to construction from galvanized panels.
  • Trouble-free installation in existing buildings, because all parts can pass through a doorway.
  • Cleaning under high pressure is possible.
  • The system can be adjusted to your needs and space.

Standard

  • Inspection hatch
  • Steel cover

Optional

  • Filling system
  • Level sensors
  • Connection pieces for jacks
  • Supply systems



Do you have a question about Hopper silo ”clean”?
