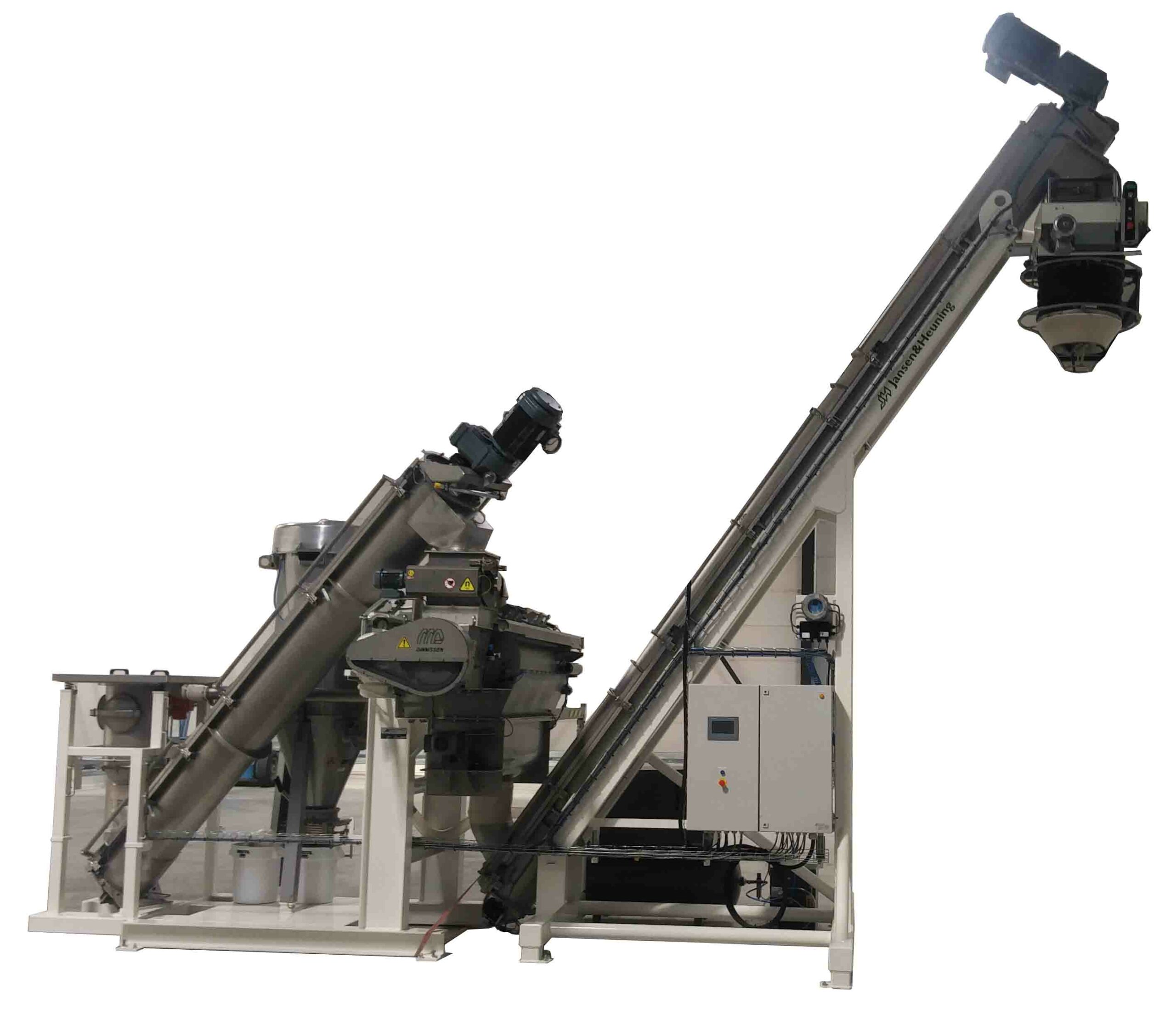

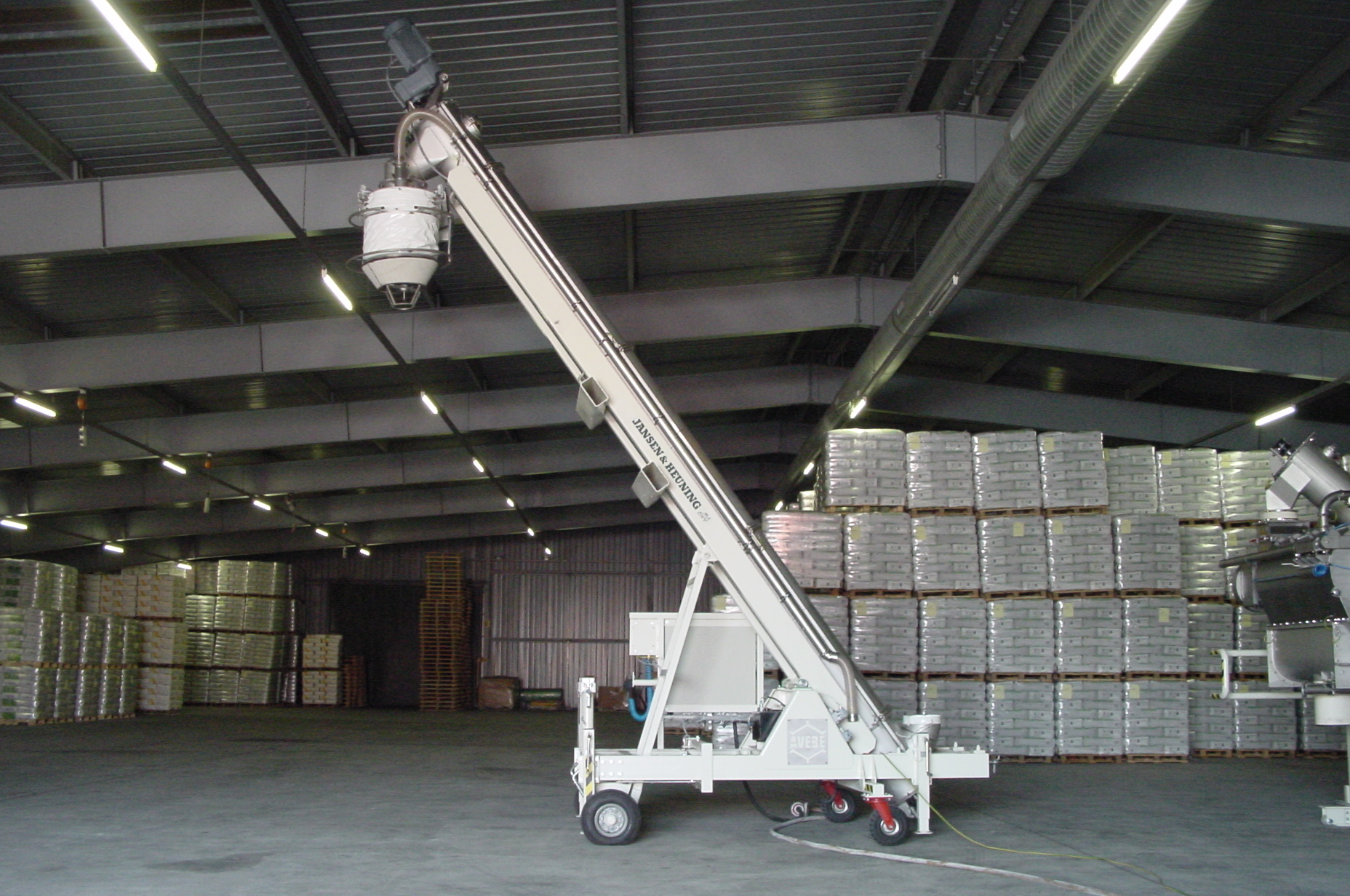

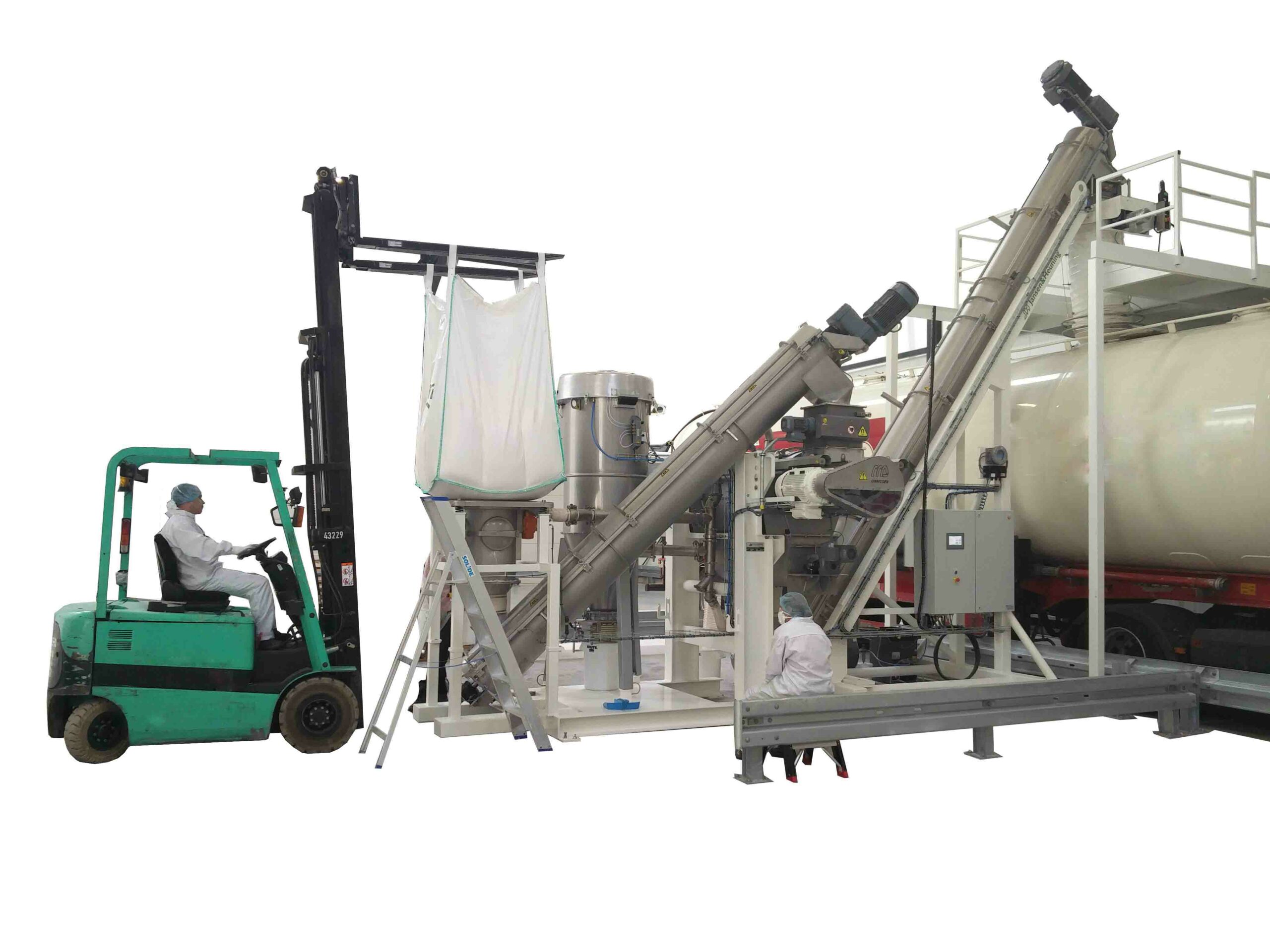

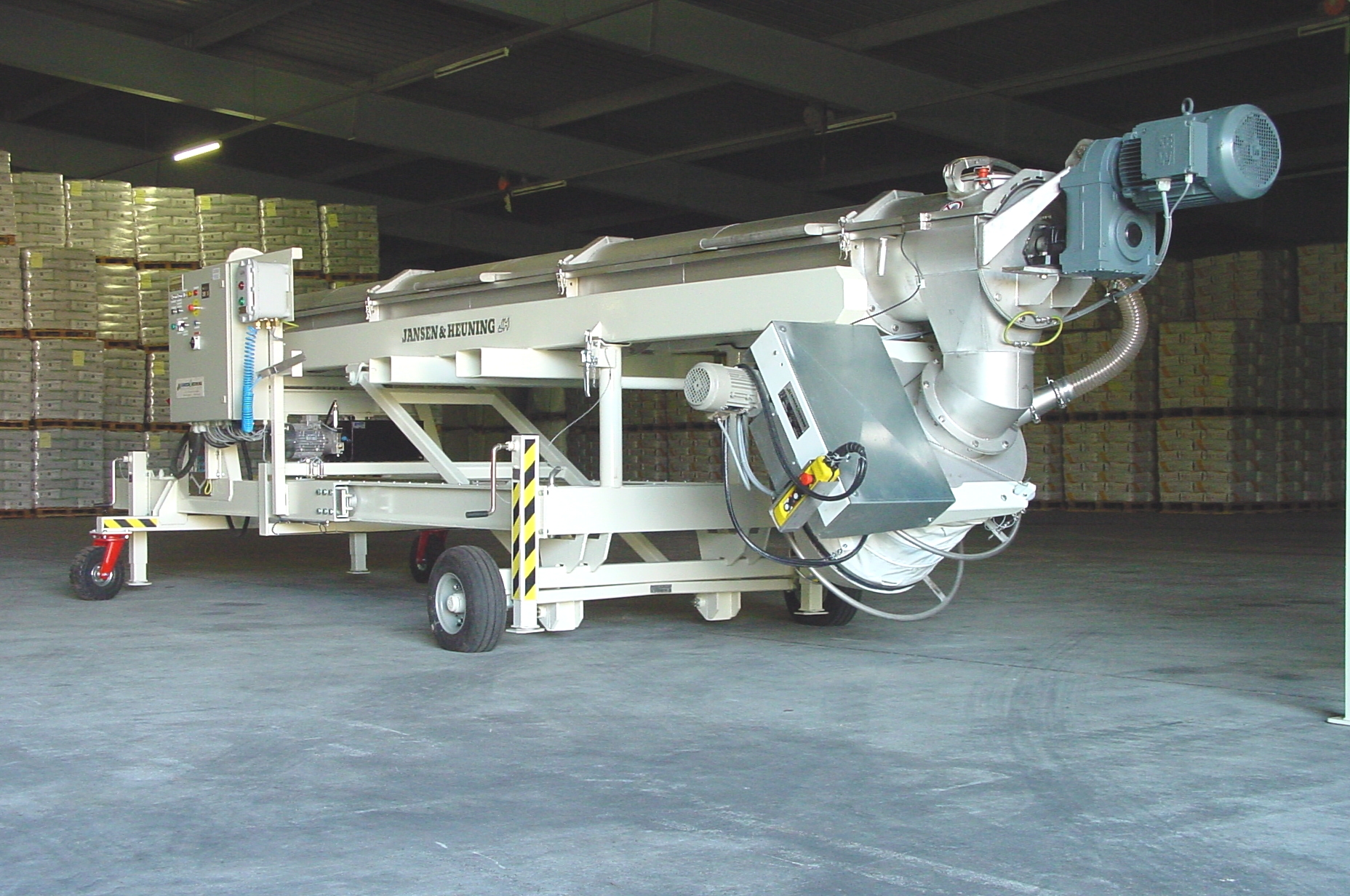

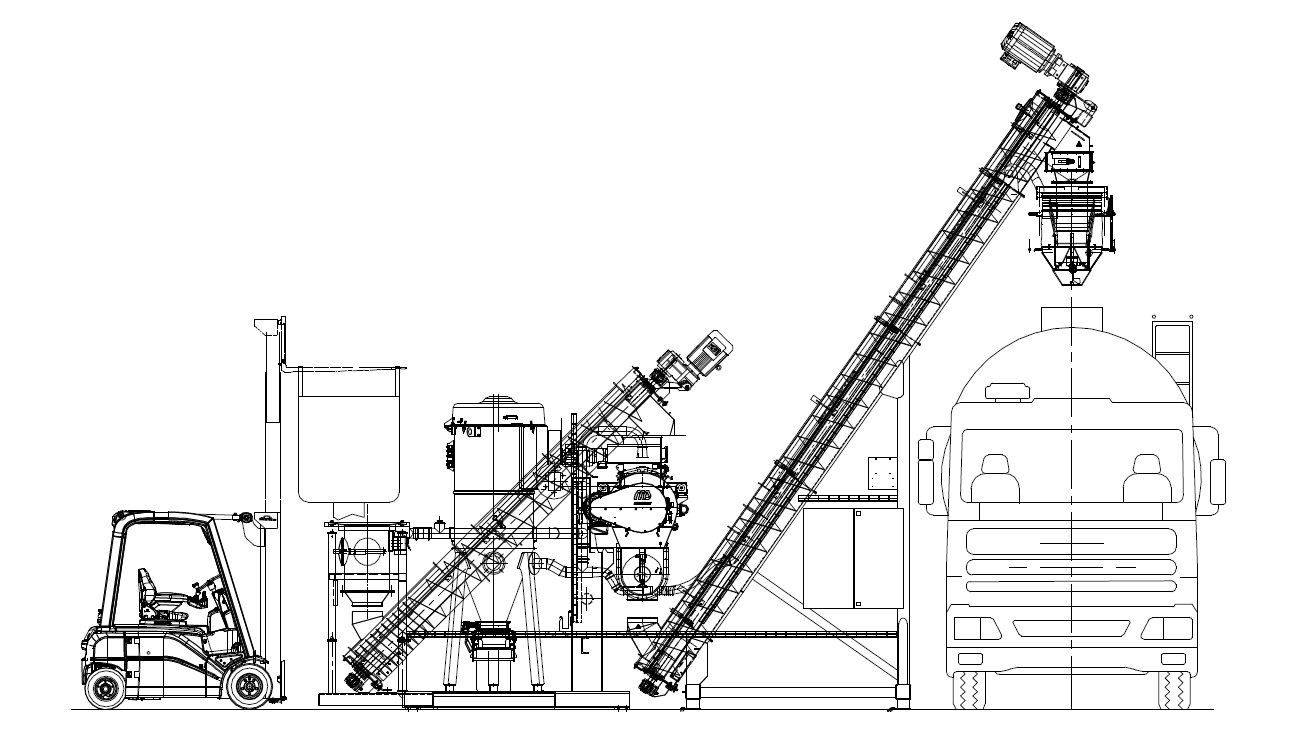

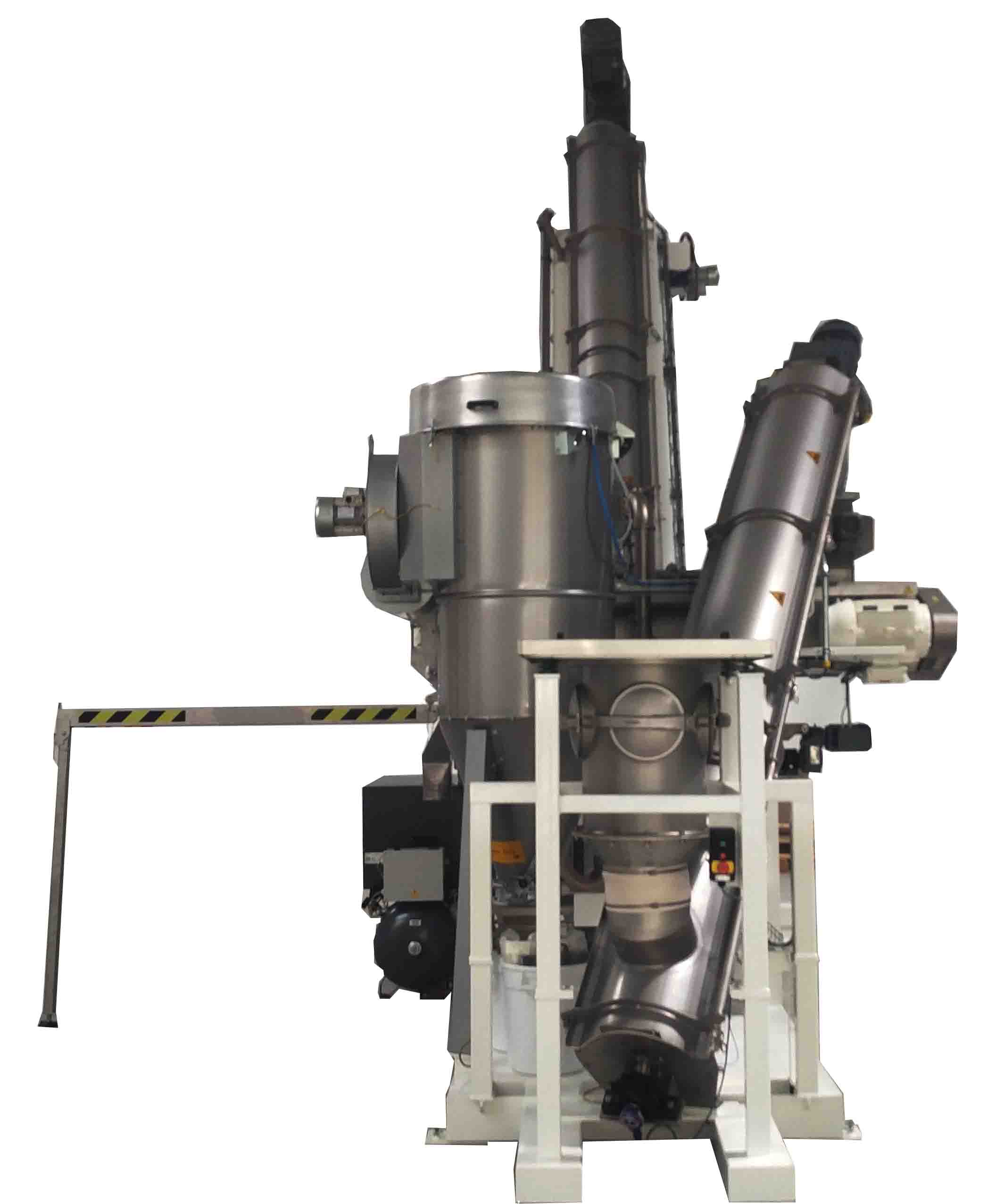

Description Bulk truck loader

FIBCs are increasingly used as a flexible storage system. The tanker lorry transports the product from storage to the customers Silo. With simply and advanced FIBC Bulk truck loader you can granted your requirements for control sieving, de-icing, e.d.

Bulk truck loader specifications

  • type of steel:
    • mild steel
    • stainless steel for the parts which are in contact with the product
  • connected to the tanker lorry with a simple hose or loading bellow
  • with or without dust filter (with rotating valve below flotter for redirecting the collected dust or a dust collecting hopper)
  • FIBC discharge station, if needed with vibrating motors
  • hangers for FIBCs, so the fork lift truck does not have to wait for the FIBC to empty
  • screening:
    • rotating screen for fine check sieving (mesh from 300 microns)
    • vibrating screen for check sieving (mesh from 4 mm and higher)
  • fixed on place or mobile
  • hydraulic height adjustment to enable transporting the machine with a normal lorry

Other special executions on request
