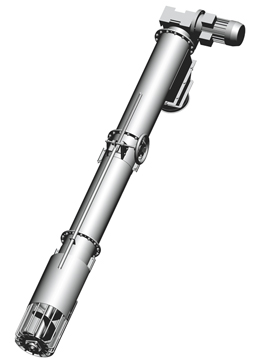

Description Auger SS205-SS254

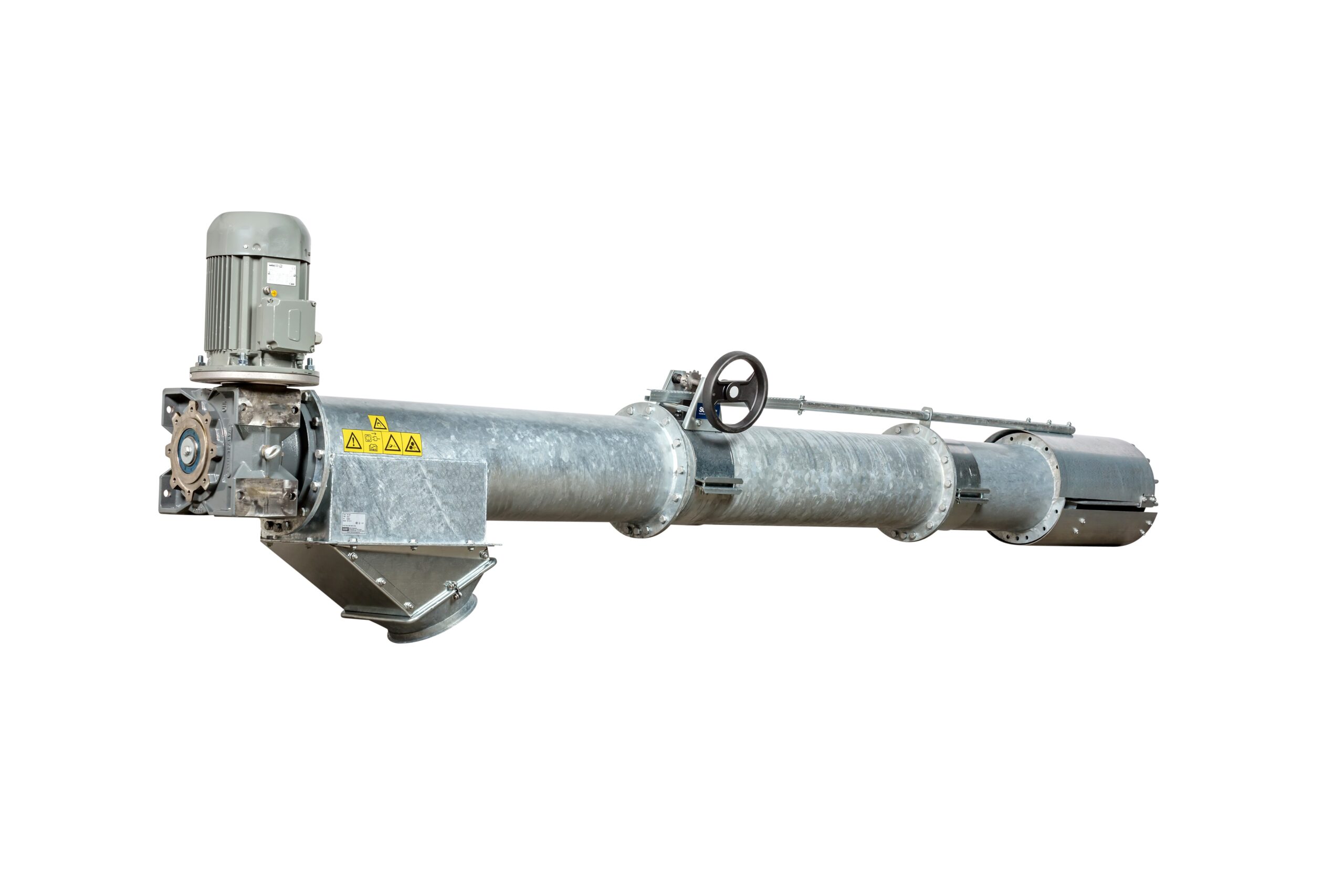

For bigger capacities the SS205 and SS254 augers have been designed. These heavy duty augers with flench connections are used in intake-pits and the bigger grain silo’s. With capacities till 90 t/hr and lengths till 12 m, these augers can do the bigger jobs.

Capacity Horizontal  45° 90°
SS205 60 42 21
SS254 90 72 46
conveying capacity in tons/hr (with 700 kg/m³ in wheat of 16%)

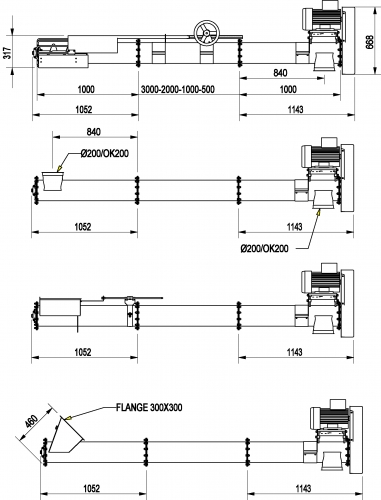

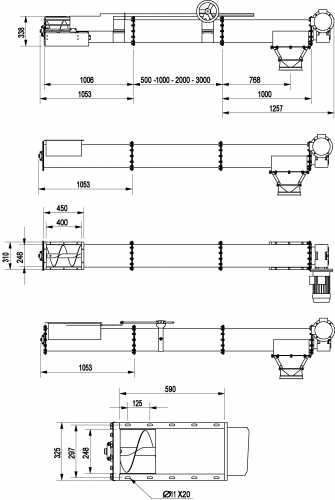

Dimensional sketch SS205/SS254 auger


Do you have a question about Auger SS205-SS254?
