Description Aeration ducts in floor

Mobile grids

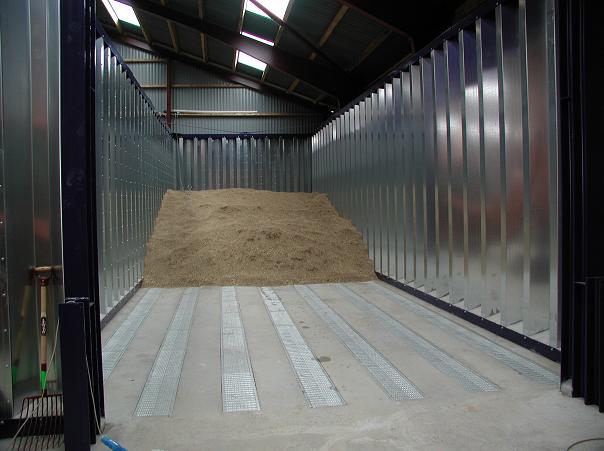

If you want to empty the warehouse, underground aeration is ideal. The grids are sufficiently strong for the axle pressure of trucks. We supply steel gutters for the grids that can be easily collapsed.

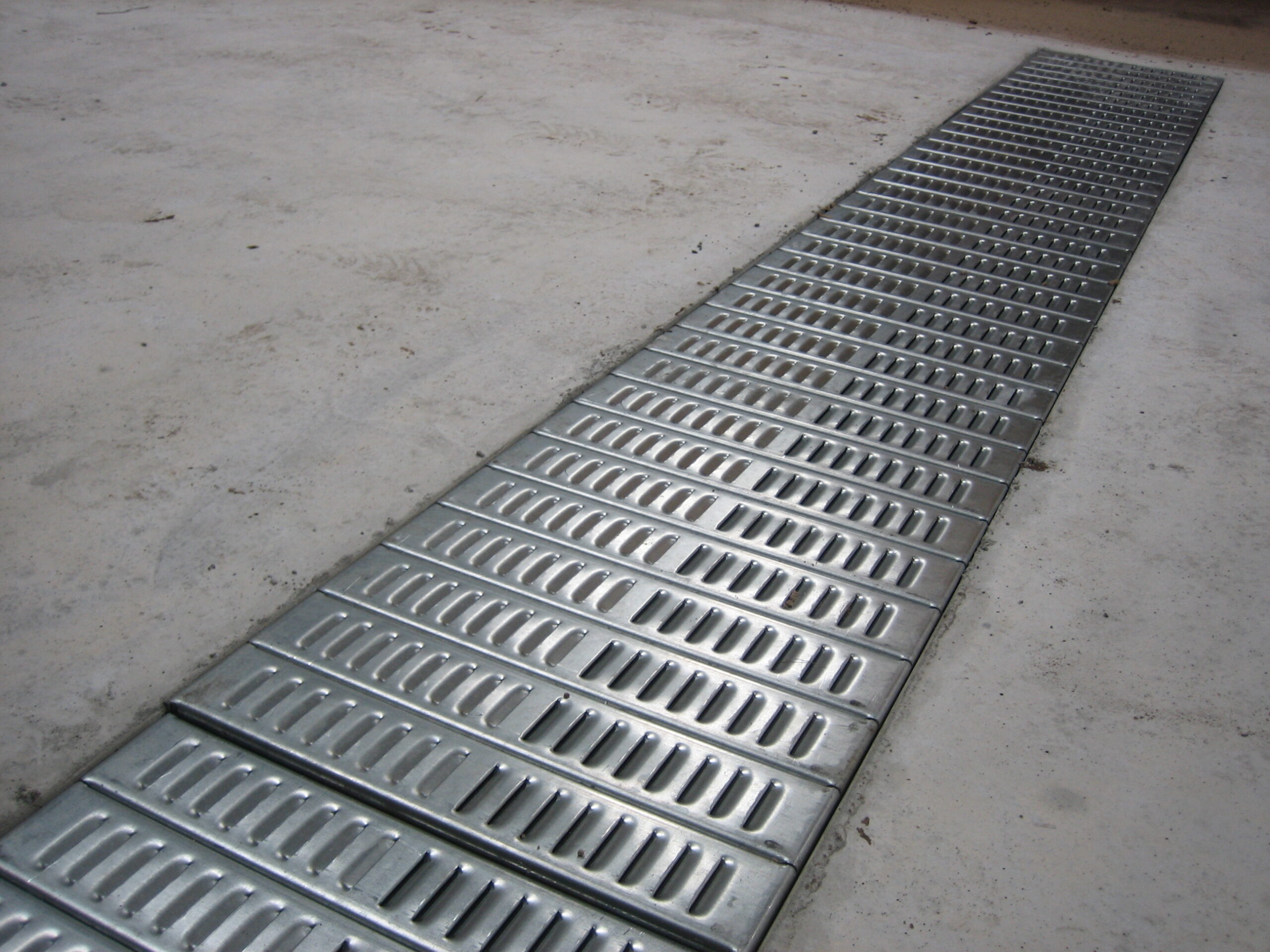

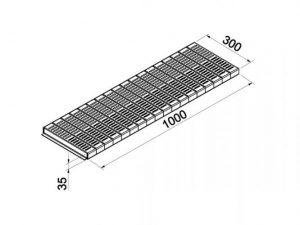

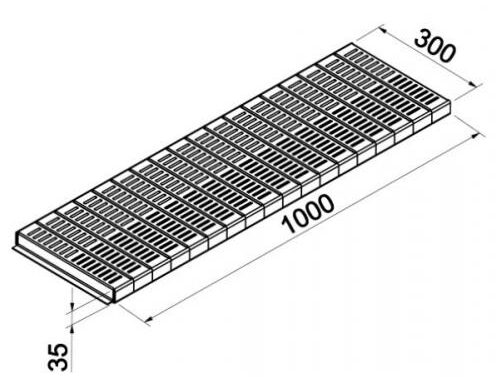

Aeration grids

art.nr. width (mm) height (mm) lenght (mm) pattern
bagv300s 300 35 1000 key perforation
bagr300p2.0 300 35 1000 perforation (Ø2,0)
bag300p1.5 300 35 1000 perforation (Ø1,5)

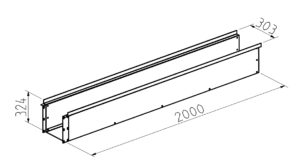

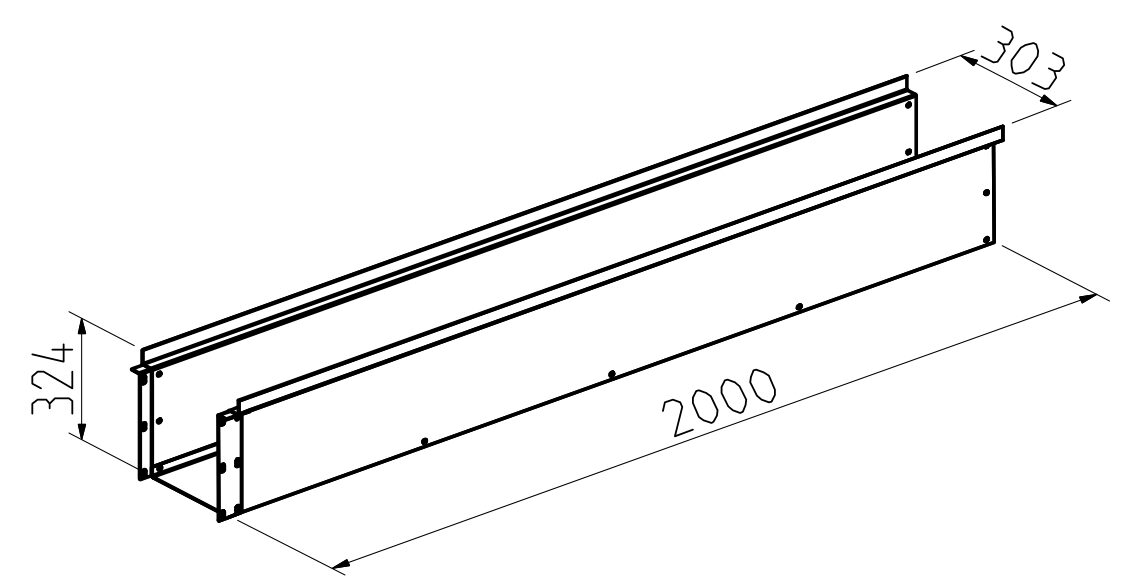

Aeration ducts

art.nr. width (mm) height (mm) lenght (mm)
bag3001000 303 324 1000
bag30021000 303 324 2000

Do you have a question about Aeration ducts in floor?
