Description Hopper silo up to 900 kg/m3

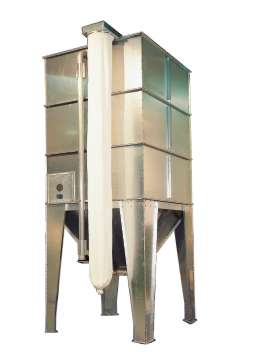

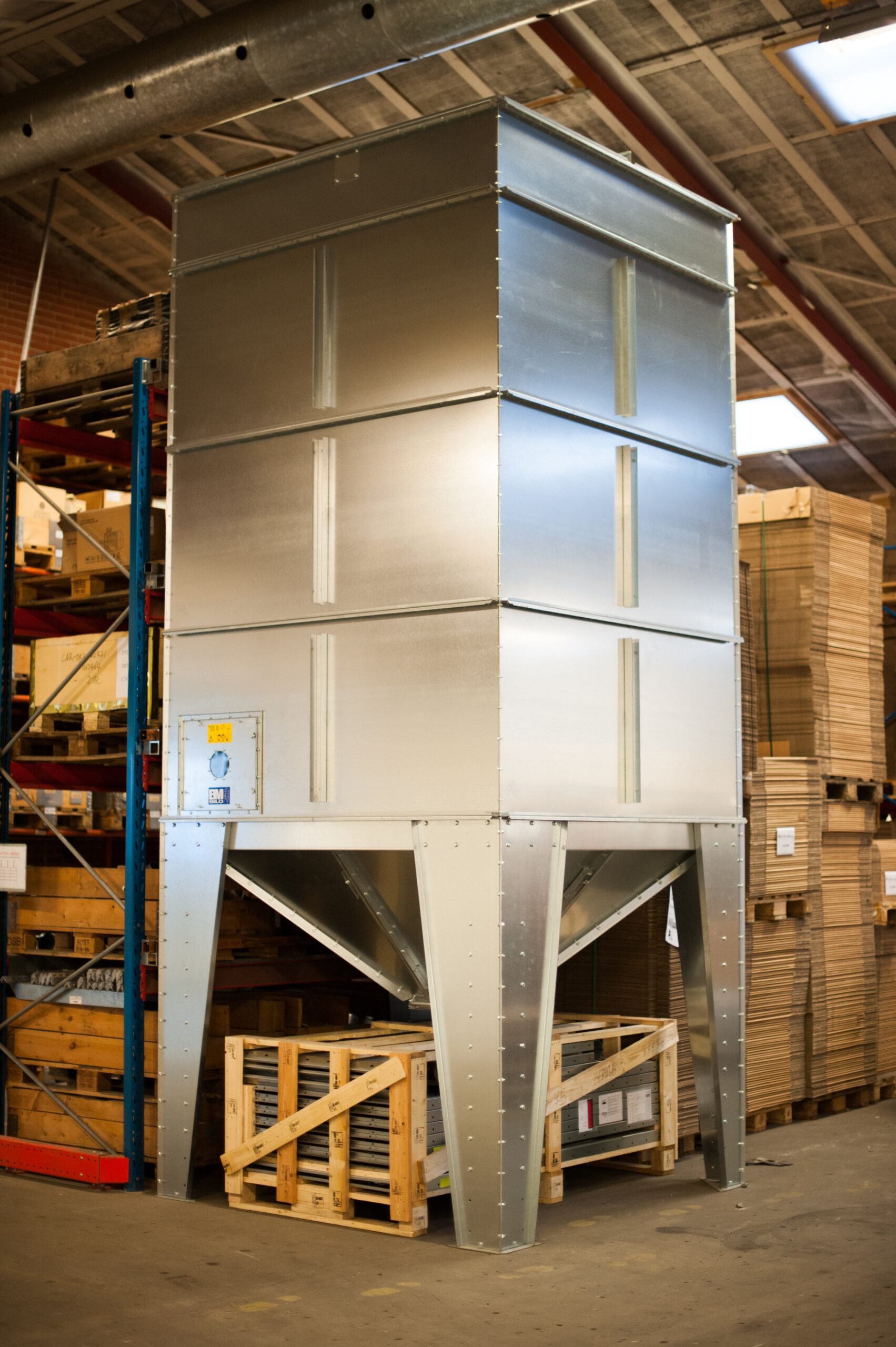

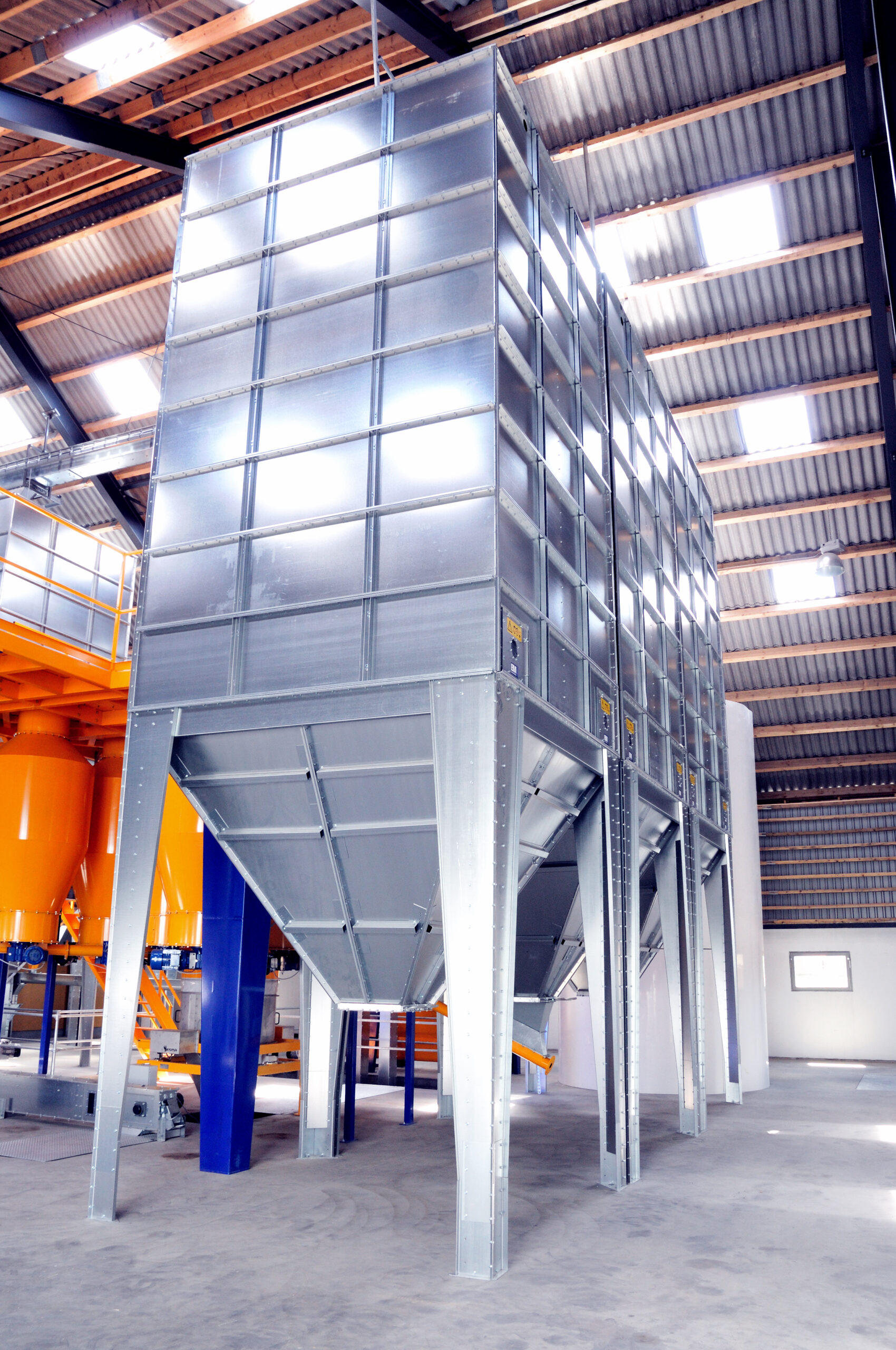

Modular silo

The modulair silo is a square modulair built silo designed for the storage of dry materials.

Measurements (mm) Height (m) Content (ton)
1050 x 1050 1.27 – 5.04 0.09 – 2.21
1300 x 1300 1.39 – 6.04 0.18 – 4.45
1550 x 1550 1.57 – 5.34 0.33 – 5.36
2050 x 2050 1.80 – 10.88 0.79 – 26.67
2550 x 2550 2.06 – 12.02 1.59 – 45.68
3000 x 3000 2.06 – 13.03 2.64 – 59.57

Modular silo – rectangular

Measurements (mm) Height (m) Content (ton)
1050 x 1550 1.51 – 5.04 0.39 – 3.54
1050 x 2050 2.50 – 6.02 0.73 – 4.97
1300 x 2550 3.05 – 7.05 1.43 – 9.07
1550 x 2050 2.55 – 6.07 1.06 -7.53
2050 x 3000 2.18 – 7.22 3.20 – 21.72
2550 x 3000 3.05 – 8.09 3.91 – 27.21
2987 x 3900 2.56 – 9.52 5.27-62.45

Specifications modular silo

  • Good internal hygiene, optimum drainage and a long service life due to galvanized panels.
  • Hassle-free installation in existing buildings, because all parts can pass through a doorway.
  • Cleaning under high pressure possible.
  • The (drainage of) the silo is adjustable in height. The standard length of the legs is based on the jacks that can be mounted under the silo.
  • Filling system complete with filling line, dump coupling, filter and filter bags.

The funnel bottom is available with angles of  45° and 60°.

  • The 45° hopper is suitable for well-running products such as grains and other grained products. The drain is 300×300 mm and has a shut-off valve. Only model 100 is delivered without a partition wall and with 300×300 mm drain.
  • The 60 ° hopper has a vertical partition wall and is suitable for products that flow less easily, such as compound food and soybean meal. The drain is 500×500 and has two shut-off valves of 250×500 mm. By using two sliders, virtually nothing remains in the silo.

Standard

  • Inspection hatch
  • Viewing window
  • Closing slide
  • Steel cover

Optional

  • Stainless steel
