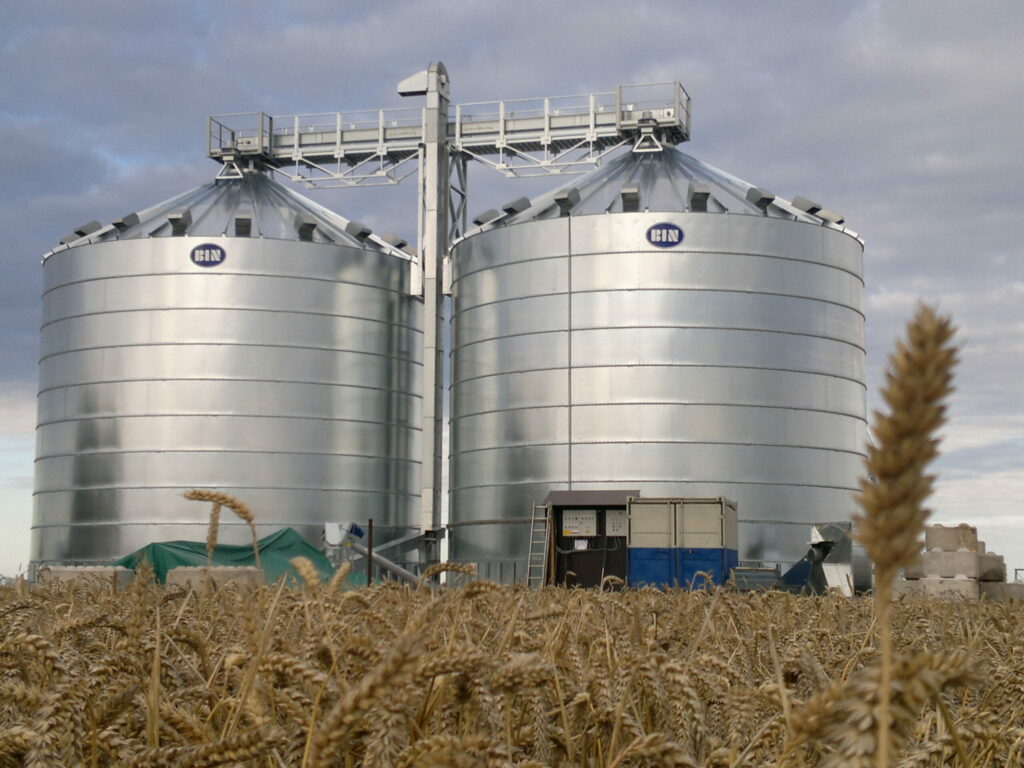

Description Outdoor silo – Flat sheet
A few years ago Jansen&Heuning started selling round silos from the Polish manufacturer BIN, and these have developed to be an important part of the range of products Jansen&Heuning has to offer.
When to choose outdoor silos with a flat sheet?
Flat sheet silos are used for outdoor silos with a capacity of up to about 1,000 tonnes. These are slightly lighter when it comes to construction and therefore cheaper to buy. Corrugated sheet silos are recommended for storage capacities of about 1000 tonnes and above. These have a stronger construction and longer service life. Corrugated plate silos are available with capacities from 500 to 5000 tonnes per silo.
The silos can be supplied in a range from 10 up to 1.500 tonnes.
Advantages of round silos
- cheap
- efficient use of space
- no need for a separate barn
- automatic filling and emptying
- closed storage – no birds can enter, no dust
- always dry floors
- no damage on aeration ducts
- easy to clean
Aeration floor
The silos are supplied with a flat perforated bottom. This floor is supported on concrete blocks. As a result, the grain is protected form moisture and pests.
Unloading
Emptying the silo is done with a central screw conveyor. An automatic sweep auger is standard equipment for the bigger silos.
Specifications
| silo model |
number of rings |
diameter
in m |
content
in m³ |
content
in tons |
wall height
in m |
total height
in m |
| BIN 60 | 5 | 4,46 | 77 | 58 | 4,80 | 6,12 |
| BIN 60W | 6 | 4,46 | 92 | 69 | 5,75 | 7,07 |
| BIN 100 | 6 | 5,35 | 133 | 100 | 5,75 | 8,18 |
| BIN 100W | 8 | 5,35 | 176 | 132 | 7,65 | 10,08 |
| BIN 200 | 8 | 6,68 | 281 | 211 | 7,65 | 10,60 |
| BIN 200W | 10 | 6,68 | 348 | 261 | 9,55 | 12,50 |
| BIN 500 | 12 | 8,59 | 695 | 521 | 11,45 | 15,33 |
| BIN 500W | 14 | 8,59 | 805 | 604 | 13,33 | 17,23 |
| BIN 1000 | 12 | 11,46 | 1260 | 948 | 11,45 | 16,18 |
| BIN 1000W | 14 | 11,46 | 1065 | 1095 | 13,35 | 18,08 |
| BIN 1500N | 9 | 14,33 | 1560 | 1170 | 8,60 | 14,15 |
| BIN 1500P | 10 | 14,33 | 1713 | 1285 | 9,55 | 15,10 |
| BIN 1500 | 12 | 14,32 | 2019 | 1514 | 11,45 | 17,00 |
Different wall heights on request.

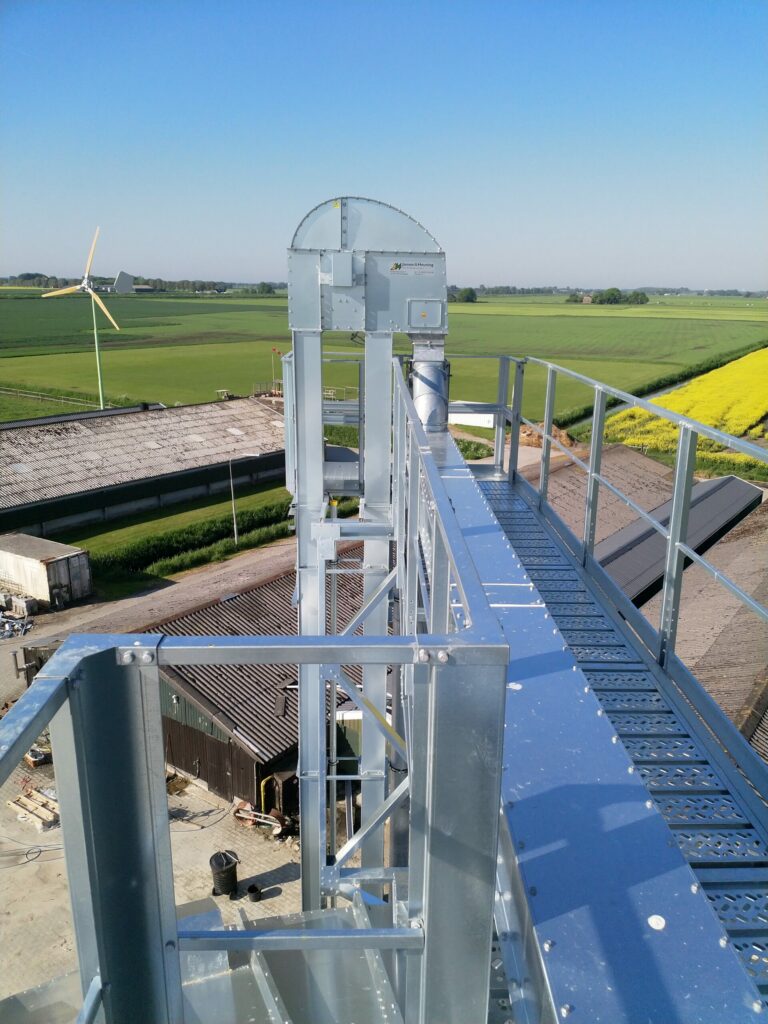

Access to the silo
A ladder comes standard with the bigger silos. This ladder is easily accessible and can be closed with a door. Entrance into the silo is provided through the internal ladder or through the manhole in the roof of the silo when it is empty.
Temperature control and aeration
Either a simple or a more complex control system can be supplied to provide optimal conditions for aeration. The control system uses the outside air temperature, the grain temperature and the relative humidity as input parameters. This allows for using outside air for drying the grain, making it possible to store it safely for longer periods.
References
- Outdoor silo’s 900 tons at Nieuwolda (NL)
- Outdoor silo’s 1400 tons at Meedhuizen (NL)
- Outdoor silo 590 tons at Blijham (NL)
- Outdoor silo’s 450 tons at Meeden (NL)
- Outdoor silo 700 tons at Appingedam (NL)
