Description Moveable augers
A moveable auger is a good solution for loading or unloading silos, trucks and lorries. Jansen&Heuning supplies rigid augers in several lengths and executions.
Practise

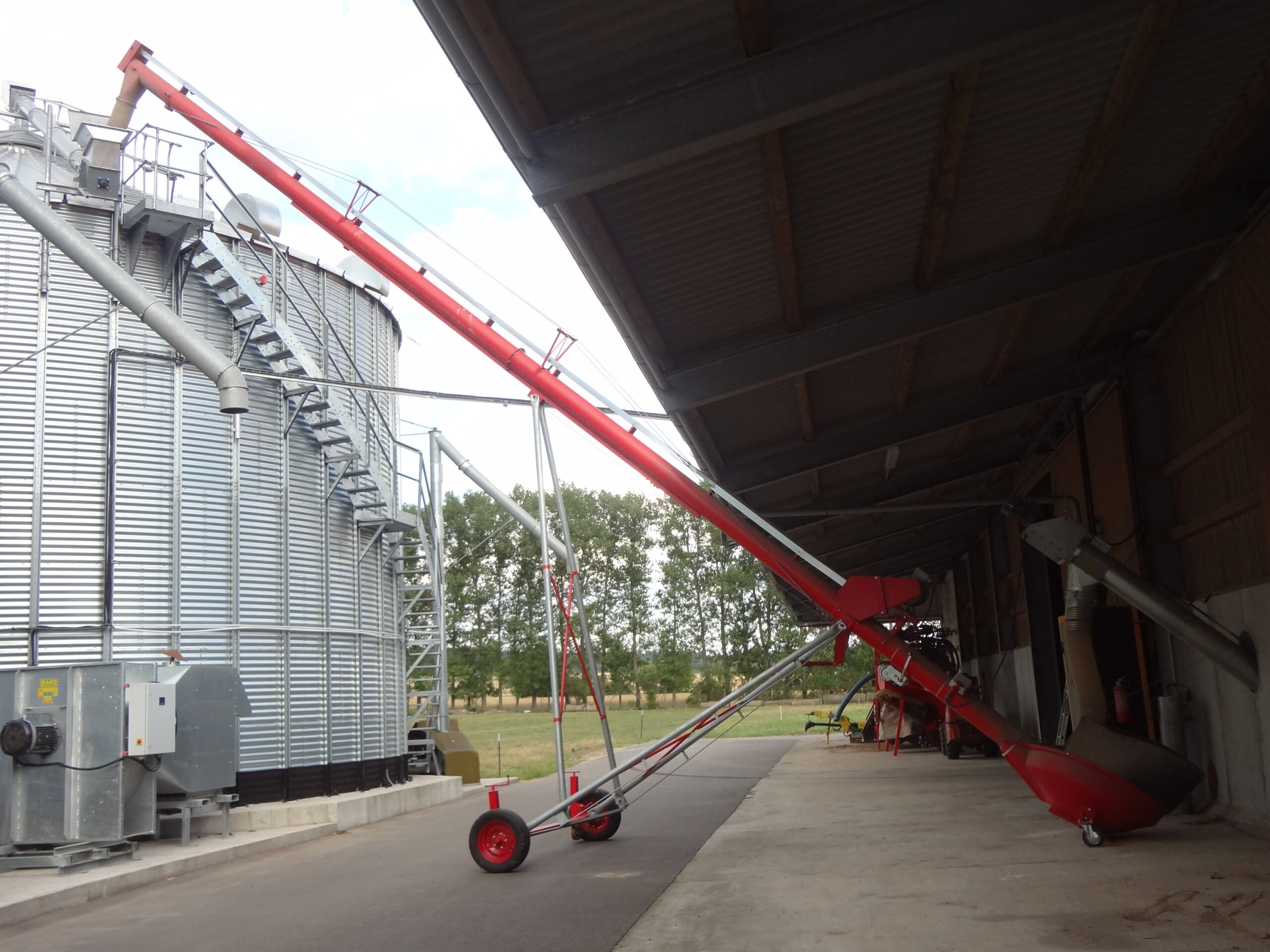

Because the augers are mounted on a frame with wheels, they can be used in several places. For loading and unloading silos, an auger is ideal. But also a lorry or a truck can be unloaded with an auger. For this purpose a polyester intake hopper can be supplied. The height of the auger is stepless adjustable.
Drive
There are two possibilities for the drive of the auger: with an electric motor (type EMD) or with PTO shaft from the tractor (type MK). The MK auger is delivered with a practical mechanically driven hopper.
Options
- the augers can be delivered with turnable wheels, so they can be also moved sideways
- flexible outlet, 90 cm
- swiveling outlet

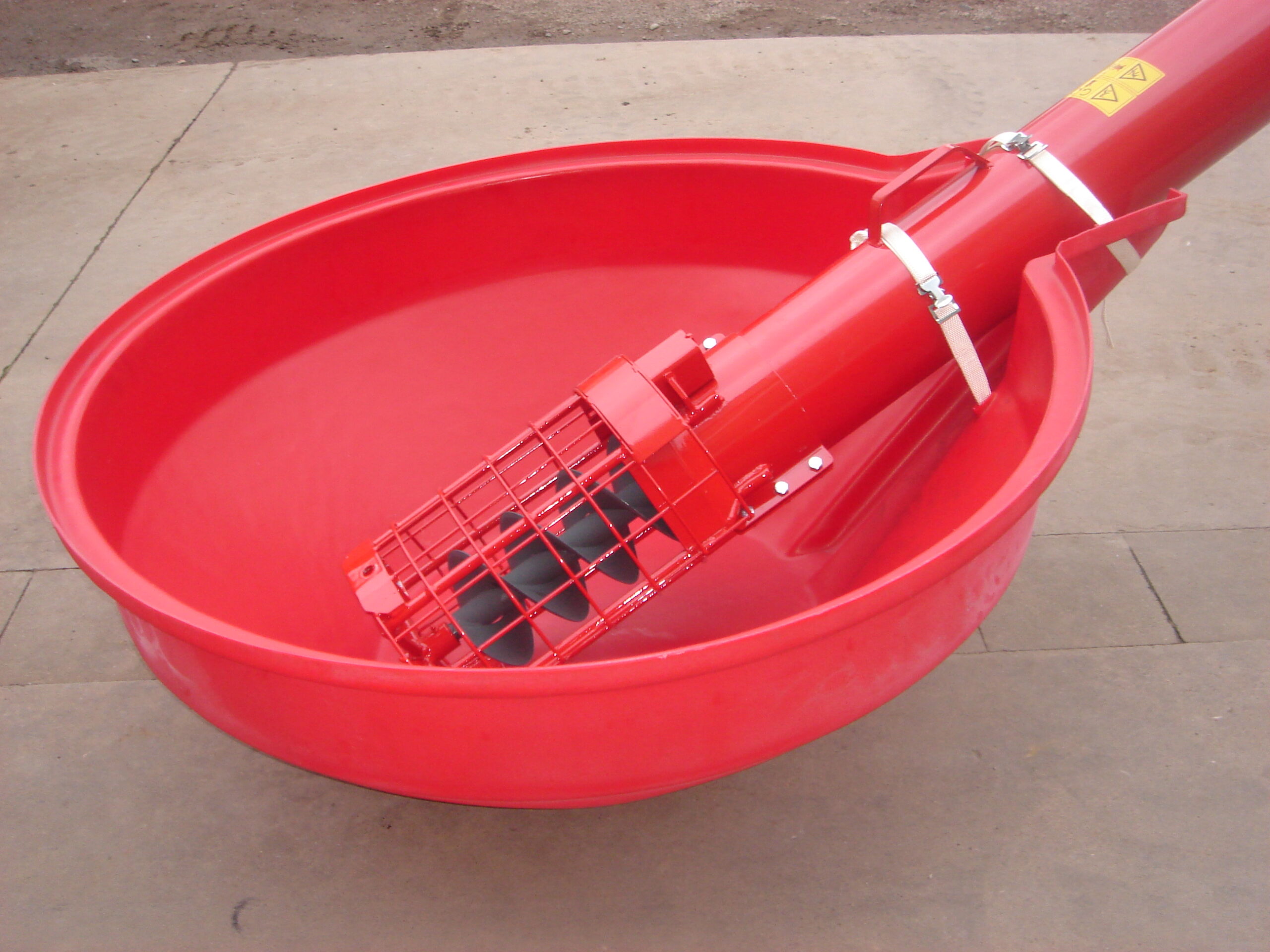

- polyester intake hopper (several versions)
- capacity regulation
- side drive for PTO shaft
Technical specifications movable augers
Type | Ø mm | length m | capacity t/h | kW |
EMD 731 | 180 | 9,30 | 35 | 4,0 |
EMB 736 | 180 | 10,80 | 35 | 5,5 |
EMD 831 | 200 | 9,30 | 50 | 5,5 |
EMD 836 | 200 | 10,80 | 50 | 7,5 |
EMD 841 | 200 | 12,30 | 50 | 7,5 |
EMD 846 | 200 | 13,80 | 50 | 11,0 |
EMD 851 | 200 | 15,30 | 50 | 11,0 |
EMD 856 | 200 | 16,80 | 50 | 11,0 |
EMD 861 | 200 | 18,30 | 50 | 11,0 |
EMD 871 | 200 | 21,30 | 50 | 15,0 |
EMD 1031 | 250 | 9,30 | 90 | 11,0 |
EMD 1036 | 250 | 10,80 | 90 | 11,0 |
EMD 1041 | 250 | 12,30 | 90 | 11,0 |
EMD 1046 | 250 | 13,80 | 90 | 15,0 |
EMD 1051 | 250 | 15,30 | 90 | 15,0 |
EMD 1056 | 250 | 16,80 | 90 | 15,0 |
EMD 1061 | 250 | 18,30 | 90 | 18,0 |

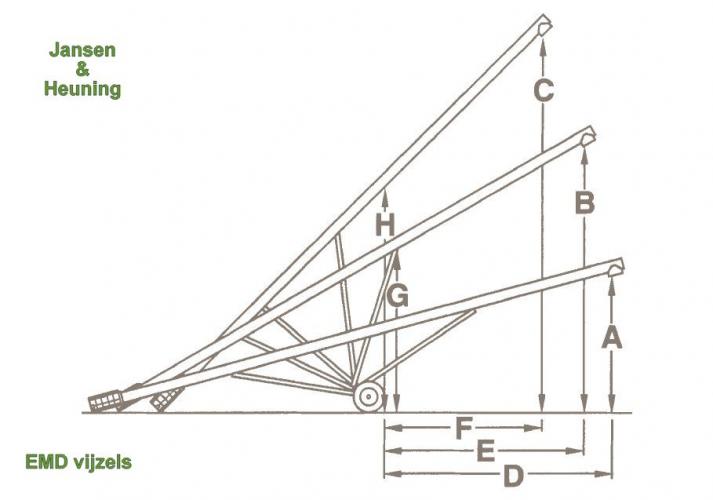

Length | Height and reach in meters | |||||||
m | A | B | C | D | E | F | G | H |
7.80 | 1.90 | 3.86 | 5.46 | 3.28 | 2.87 | 2.21 | 2.40 | 3.47 |
9.30 | 2.34 | 4.59 | 6.55 | 4.22 | 3.68 | 2.87 | 2.50 | 3.68 |
10.80 | 2.74 | 5.36 | 7.62 | 6.55 | 5.34 | 3.40 | 3.00 | 4.39 |
12.30 | 2.92 | 6.15 | 8.71 | 7.50 | 6.50 | 3.94 | 3.53 | 5.00 |
13.80 | 3.01 | 6.92 | 9.63 | 8.00 | 6.80 | 4.36 | 3.93 | 5.51 |
15.30 | 3.62 | 7.62 | 10.82 | 8.20 | 6.15 | 4.85 | 4.32 | 5.82 |
18.30 | 3.76 | 8.63 | 12.55 | 8.33 | 7.47 | 6.04 | 4.90 | 7.40 |
