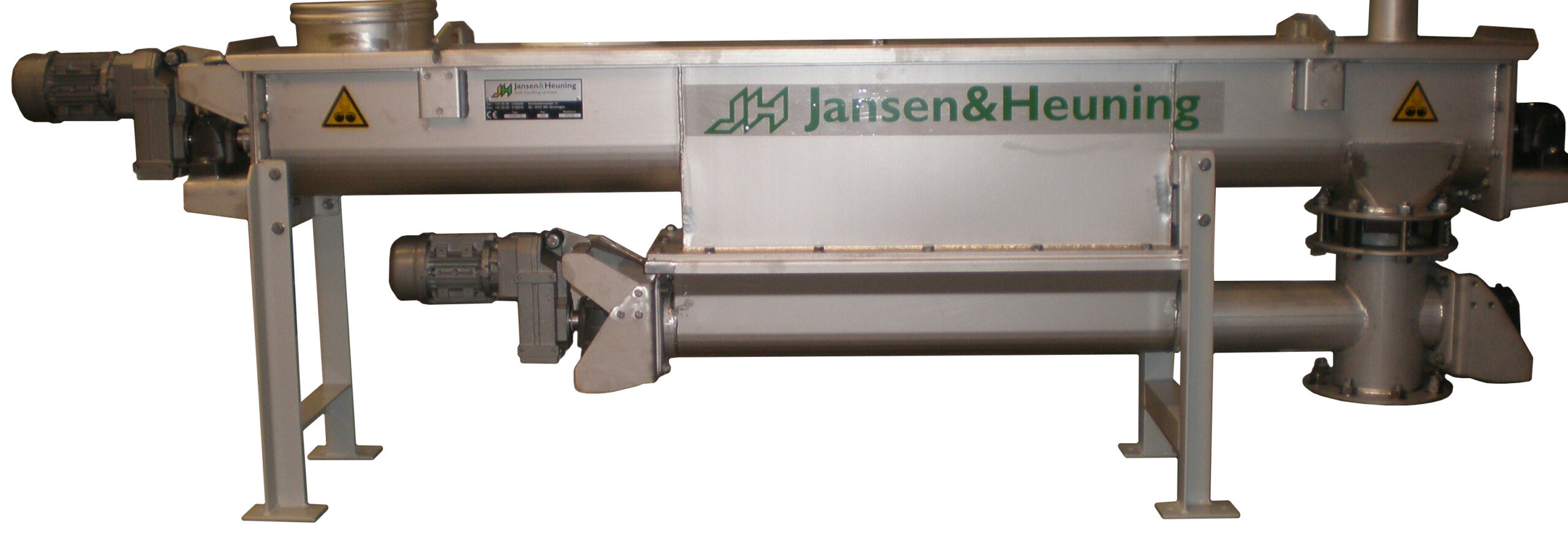

Description JHS200 Screw conveyor
The smallest type with a diameter of 200 mm.
| Subcategory | Screw conveyors |
| Name | JHS200 Screw conveyor |
| Article number | JHS200 |
| Screw blade diameter | 200 mm |
| Drive shaft diameter | 40 mm |
| Width trough excl. flange | 220 mm |
| Width trough incl. flange/cover | 340 mm |
| Height trough | 330 mm |
| Capacity | 20 (m³/hr at 45% filling and v=0,6 m/s) |
Jansen&Heuning has been manufacturing installations for storage and bulk handling since 1901. Creative solutions for bulk handling are designed and built in The Netherlands and installed all over the world. Key success factors are our in-house engineering, dedicated employees and down-to-earth approach. We think along with our customers and come up with reliable standard products and professional, custom-made solutions.
