Pickup unit potato/onion

Jansen&Heuning is the inventor of the pick-up unit as a specialist in potato and onion handling. The pick-up unit has proven itself in practice at farms and processing facilities around the world, where high capacities are handled daily without product damage. In addition, maintenance requirements are low and breakdowns are rare.
The straightforward operation and stable performance mean that the pick-up unit is a structural part of bulk storage operations for potatoes and onions. Pick-up of grain is also possible.
To date, thousands of pick-up units have been delivered, establishing Jansen&Heuning as a market leader in pick-up units.

more info

About Jansen&Heuning

Jansen&Heuning has been manufacturing installations for storage and bulk handling since 1901. Creative solutions for bulk handling are designed and built in The Netherlands and installed all over the world. Key success factors are our in-house engineering, dedicated employees and down-to-earth approach. We think along with our customers and come up with reliable standard products and professional, custom-made solutions.

more about us

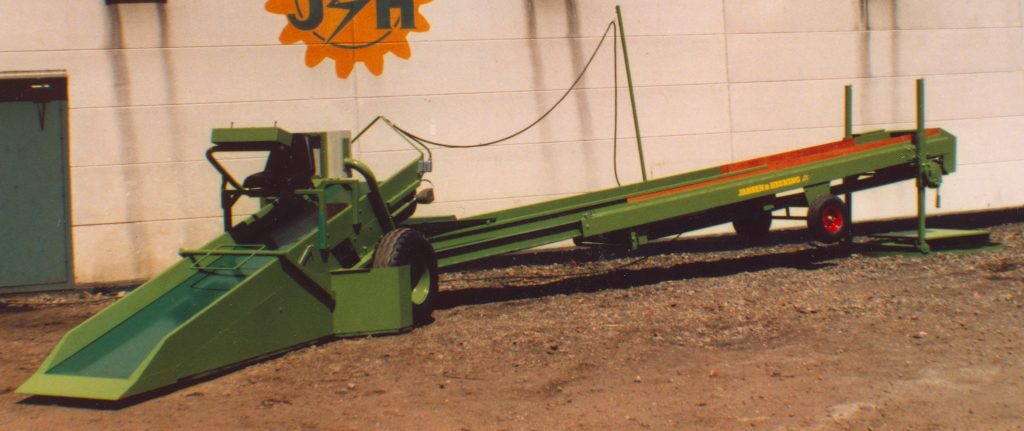

T100 pickup unit

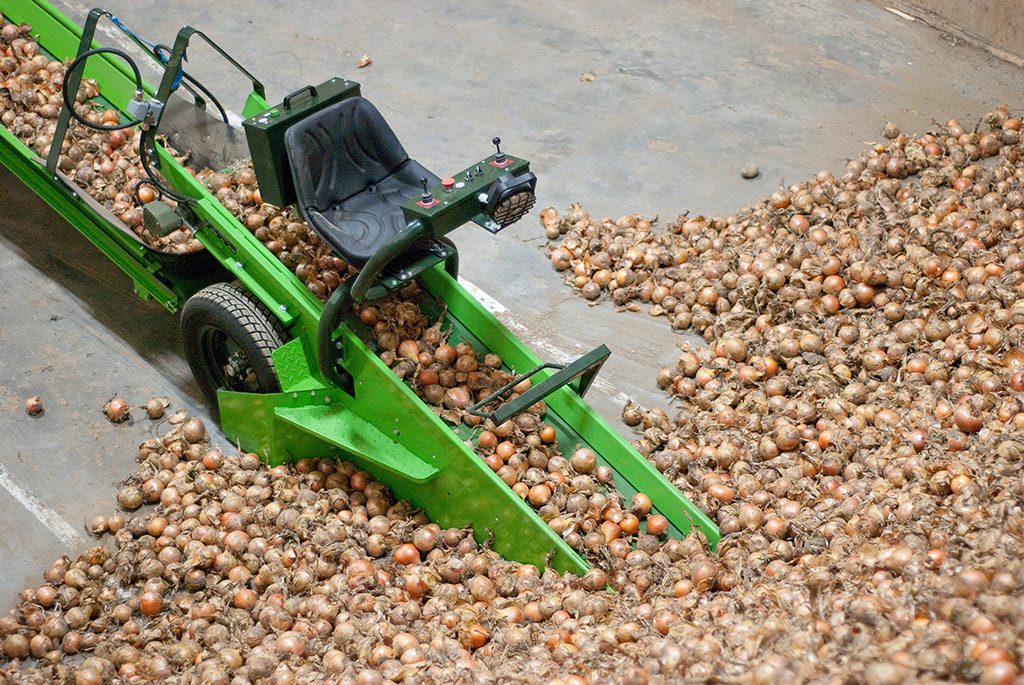

T40L pickup unit
T60L opschepmachine met telescopische band voor aardappelen

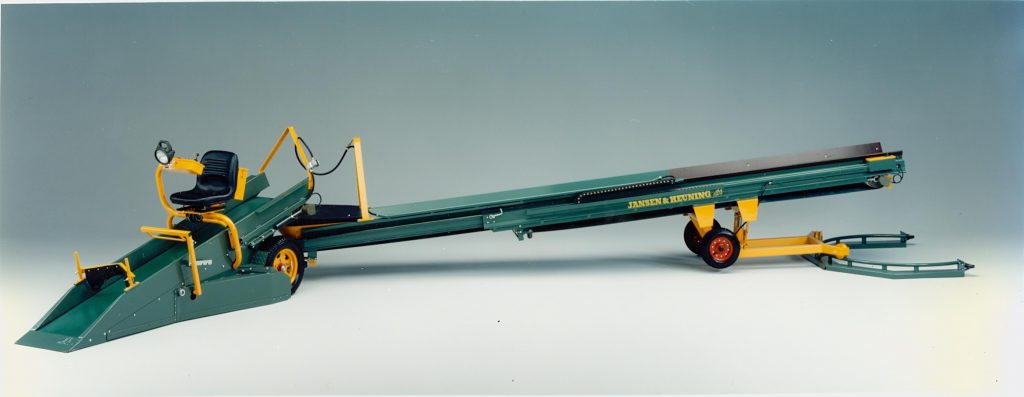

T60L pickup unit

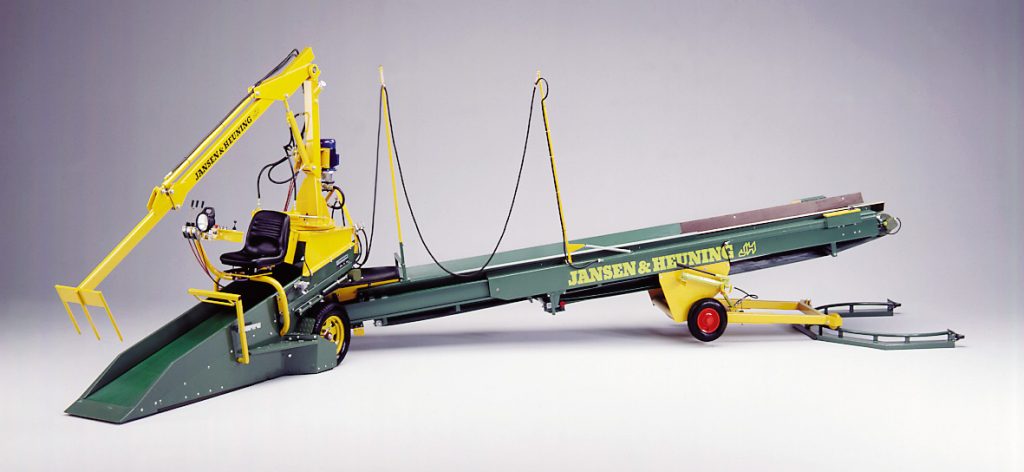

T60S Aufnahmegerät für Kartoffeln mit Teleskopband

T60S pickup unit

Pickup units suitable for

  • potatoes
  • onions
  • carrots
  • chicory
  • grain
  • all other granular products, provided that they do not stick

Standard with

    • energy chains
      energy chains, mounted directly on the machine, replace the previous antenna that could be troublesome when emptying small cells.
    • hydraulic chassis
      for easy height-adjustment
    • snout
      The specially shaped snout makes shure that the tire stays on track. Because of that the lifetime of the tire is enormously extended.

Specifications

 type   T40L T60L T60S T100
 capacity up to (tons/hr)    50  80  80 130
 width pickup belt    400  550  550 750
 width telescope belt    450  600  600 850
 operating range ( m²)  130  170  250

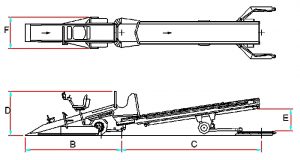

 length pickup truck B  2870  3300  3390 4400
 telescope retracted C  3800  4200  4080 5500
 telescope extracted    6650  7480  9260 9100
 extendable length    2850  3280  5180 3600
 max. machine height D  1320  1500  1500 1800
 max. height telescope E  1130  1110  1110 1200
 max. width F  957  1080  1080 1690
 belt speed pickup (m/s)    0,84  0,56  0,56 0,77
 belt speed telescope (m/s)    1,0  1,0  1,0 1,0
 drive vehicel (kW)    2×0,55  2×1,1  2×1,1 2×2,2
 drive pickup belt (kW)    0,75  1,5  1,5 2,2
 drive telescope belt (kW)    1,5 2,2  2,2 3
 weight pickup belt(kg)   450 750 760
 weight telescope belt (kg)   415 570 1050

All measurements in mm

Options

  • moveable shields
    no more problems with thresholds and uneven floors
  • automatic stop switch
    Both belts will be deactivated when the discharge floots, but is possible to drive

Special designs

 options T40L T60L T60S
moveable side shields – v standaard
limit switch v v v
remote control v v v
wireless remote control v v v
two speed drum motor mp v v v
grain version T60L-T60S – v v
T60L force enlarger – v –
onions grab (supplied separately) – v v
onions grab mounted on T60L – T60S – v v
scraper pickup belt T40L v – –
scraper pickup belt T60L – T60S – v v
scraper telescopebelt T40L v – –
scraper telescopebelt T60L – T60S – v v
